Blast furnace gas (BFG) is a byproduct of the iron-making process in a blast furnace. It is a mixture of gases such as carbon monoxide, carbon dioxide, nitrogen, and small amounts of hydrogen. Accurate measurement of blast furnace gas flow is critical for energy efficiency, safety, and process optimization. Choosing the appropriate flow meter for BFG can significantly impact both the performance and safety of the system. This article explores the characteristics of BFG, the types of flow meters commonly used for BFG measurement, and their advantages and disadvantages. We will also discuss installation and maintenance requirements to ensure optimal performance.

1. Characteristics of Blast Furnace Gas

Blast furnace gas is typically produced during the ironmaking process and can vary in composition depending on the materials and process conditions. Its composition is generally about 50-70% nitrogen, 20-30% carbon dioxide, 10-15% carbon monoxide, and small amounts of hydrogen, methane, and other gases. The flow rate of BFG varies depending on furnace conditions, and it is usually at a high temperature, containing dust particles and impurities that can challenge flow measurement systems.

Because of these characteristics, choosing the right flow meter is essential to ensure accurate measurements in such a harsh environment.

2. Types of Flow Meters for Blast Furnace Gas Measurement

2.1 Differential Pressure Flow Meter (DP Flow Meter)

A differential pressure (DP) flow meter is one of the most commonly used flow measurement devices in industries involving high-temperature gas flows like blast furnace gas. It operates by measuring the pressure difference across an obstruction placed in the flow path (such as an orifice plate, venturi, or flow nozzle).

Advantages:

  • Simple, cost-effective, and widely available.
  • Reliable for high-pressure and high-temperature gases.
  • Can be used in harsh conditions if properly maintained.

Disadvantages:

  • Prone to errors caused by fluctuating gas composition and flow disturbances.
  • Requires regular calibration and maintenance to ensure accurate readings.
  • Accuracy may decrease if there are large amounts of dust or particulates in the gas.

2.2 Ultrasonic Flow Meter

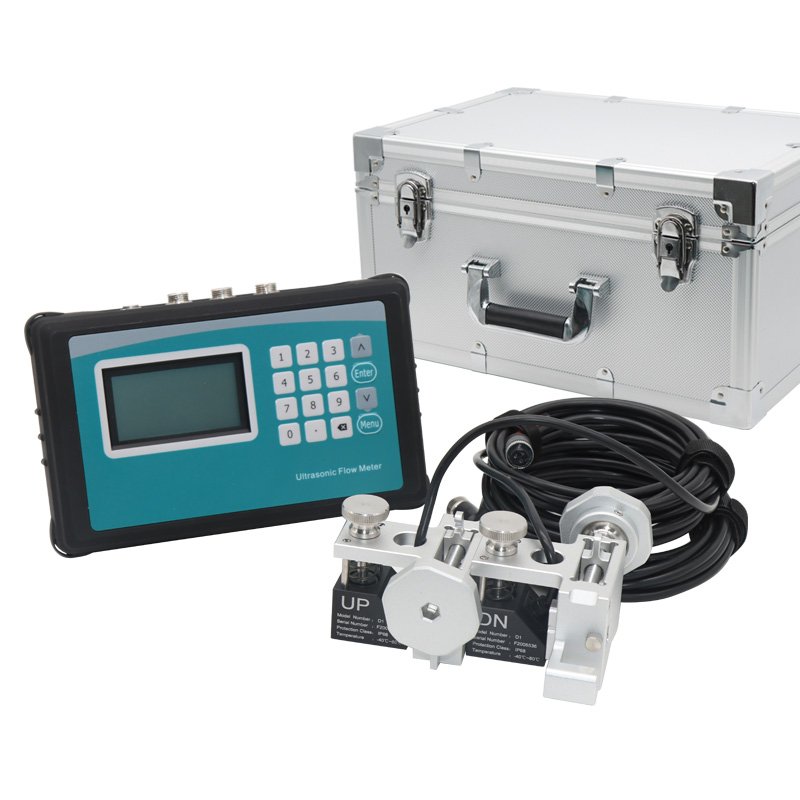

Ultrasonic flow meters use sound waves to measure the velocity of gas. By transmitting and receiving ultrasonic signals through the gas, they can calculate flow rate based on the time-of-flight principle.

Advantages:

  • Non-invasive and doesn’t require physical contact with the gas, reducing wear and tear.
  • High accuracy and minimal maintenance.
  • Suitable for measuring gas with varying compositions and conditions.

Disadvantages:

  • Higher initial cost compared to DP flow meters.
  • Sensitive to installation conditions (e.g., straight pipe lengths).
  • Requires stable, homogenous flow for accurate readings, which can be challenging with BFG.

2.3 Vortex Flow Meter

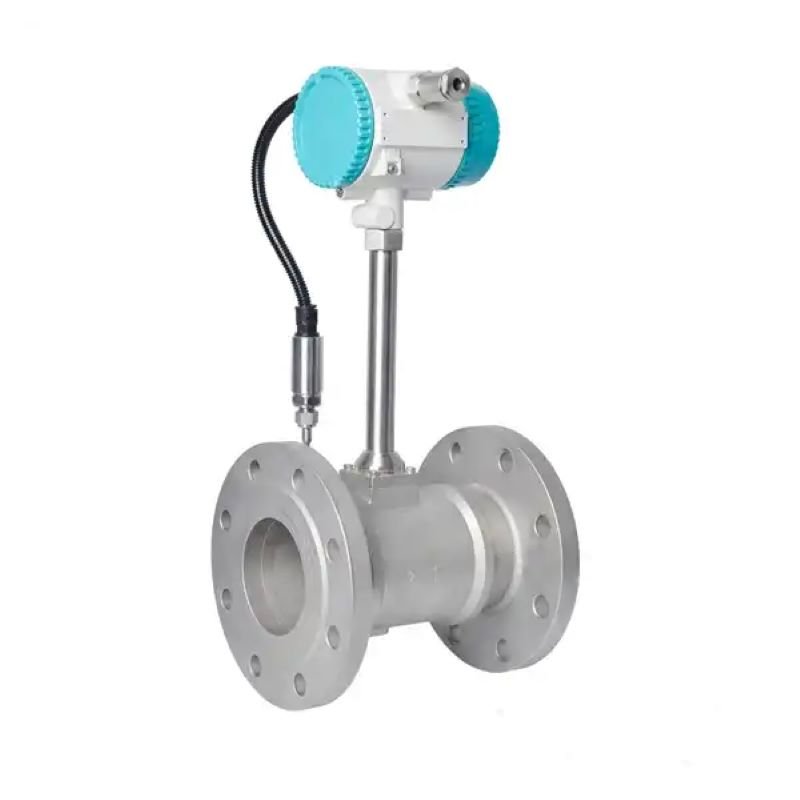

Vortex flow meters operate on the principle of fluid dynamics. As the gas flows through a bluff body, vortices are generated at a frequency proportional to the flow rate. These vortices are detected by sensors and converted into a flow rate measurement.

Advantages:

  • Simple design and reliable for steady flow conditions.
  • Provides real-time measurements without the need for external power sources.
  • Suitable for gases with a stable composition and flow.

Disadvantages:

  • Accuracy can be affected by fluctuating flow patterns and varying gas compositions.
  • Less effective in high-temperature environments compared to DP meters.
  • May struggle with highly turbulent or fluctuating flows.

3. Installation and Maintenance of Blast Furnace Gas Flow Meters

Installation Requirements:

  • Straight Pipe Lengths: For ultrasonic and vortex flow meters, it is crucial to install them with adequate straight pipe lengths upstream and downstream to ensure accurate flow readings.
  • Temperature and Pressure Conditions: Flow meters should be rated for the high temperatures and pressures typically associated with BFG. Special considerations should be made for insulation and protection against corrosive elements.
  • Dust and Contamination Control: Dust particles can clog or damage flow sensors, especially in DP and ultrasonic flow meters. Effective filtration systems or regular cleaning schedules should be implemented to ensure long-term reliability.
  • Calibration: Flow meters must be calibrated regularly, especially in environments with varying gas compositions and flow rates. Calibration intervals depend on the type of meter and operating conditions.

Maintenance Requirements:

  • Regular Inspection: Inspect all components, especially sensors and obstruction elements in DP flow meters, for wear and damage. For ultrasonic meters, check for signal loss or degradation.
  • Cleaning: Periodically clean the meters to remove dust, soot, or other debris that may affect accuracy. Ultrasonic flow meters, in particular, may require more frequent cleaning.
  • Calibration: Perform regular calibration based on the operating conditions of the blast furnace to maintain accurate readings. Factory calibration certificates and adjustments should be recorded to monitor the meter’s performance over time.

Accurate flow measurement of blast furnace gas is crucial for operational efficiency, safety, and energy management. The choice of flow meter—whether it’s a differential pressure, ultrasonic, or vortex meter—depends on the specific characteristics of the gas, the accuracy required, and the environmental conditions. Regular maintenance and installation practices ensure that these systems continue to perform optimally. By understanding the features, advantages, and limitations of different flow meters, industries can make more informed decisions to enhance their blast furnace operations.

If you want to know more about the flow meter or flow meter selection, please consult the Aister flow meter manufacturer email: sales@aistermeter.com for help.

FAQ

Q1: What type of flow meter is best for high-temperature blast furnace gas?
A1: Differential pressure (DP) flow meters are commonly used in high-temperature environments, as they are cost-effective and can withstand harsh conditions. However, ultrasonic flow meters can also be used if high accuracy is required.

Q2: Can ultrasonic flow meters measure blast furnace gas with fluctuating compositions?
A2: While ultrasonic flow meters offer high accuracy, they are sensitive to changes in flow patterns and gas composition. To ensure reliable measurements, a stable flow is necessary.

Q3: How often should blast furnace gas flow meters be calibrated?
A3: Calibration intervals depend on the meter type and operating conditions. Generally, regular calibration should occur every 6 to 12 months, or whenever significant changes in furnace operation occur.

Q4: How do I prevent dust buildup from affecting flow meters?
A4: Install filtration systems to remove larger particulates from the gas stream. Regular maintenance and cleaning schedules should also be followed to ensure that the meters function accurately over time.
