Selecting an appropriate flow meter for industrial wastewater applications requires careful consideration of various factors, including fluid properties, flow range, accuracy requirements, environmental conditions, and cost-effectiveness. Below is a detailed guide to categorizing flow meters based on these key factors to help you choose the most suitable option.
1. Classification Based on Fluid Properties
Conductive Liquids

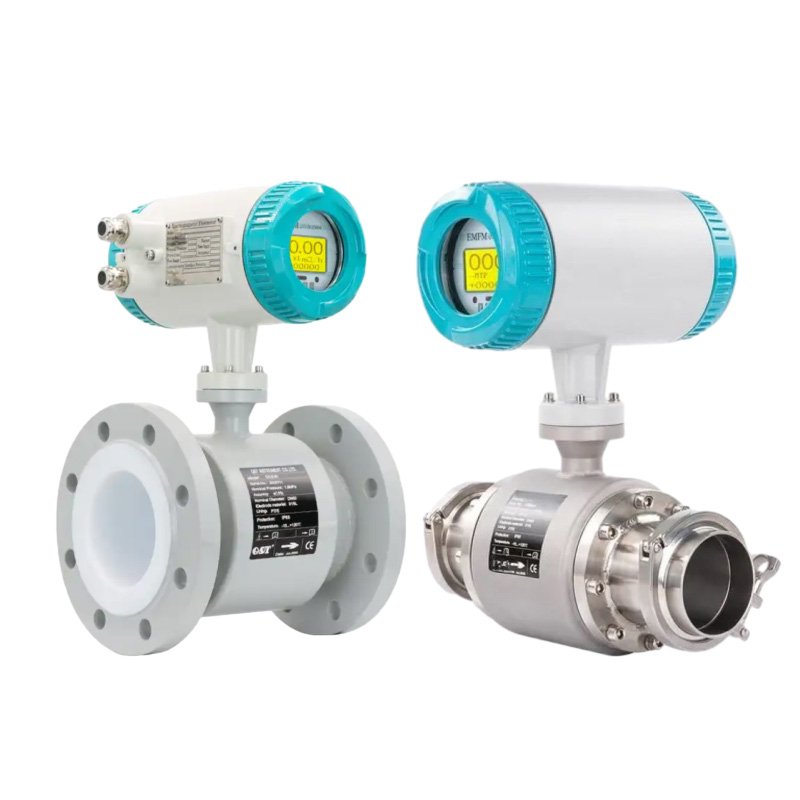

Recommended Solution: Electromagnetic Flow Meters
Analysis: Electromagnetic flow meters operate on the principle of electromagnetic induction and are ideal for conductive liquids. They offer high measurement accuracy, good stability, and long-term reliability, as they are unaffected by changes in fluid density, viscosity, temperature, or pressure. Furthermore, electromagnetic flow meters require little to no maintenance over time.
Non-Conductive Liquids or Liquids with High Gas Content
Recommended Solution: Ultrasonic Flow Meters
Analysis: Ultrasonic flow meters use the difference in ultrasonic wave propagation speed to measure flow velocity. They are suitable for a wide range of fluids, including wastewater and dirty water, and are non-invasive, causing no pressure loss or contamination. Ultrasonic flow meters provide high accuracy and can accommodate various pipe sizes and flow ranges. However, they require the presence of sufficient gas or air bubbles in the fluid to effectively transmit ultrasonic waves.
Liquids Containing Solid Particles
Recommended Solution: Vortex Flow Meters or Magnetic Turbine Flow Meters (Consider Impurity Impact)
Analysis: Vortex flow meters measure flow velocity by detecting the alternating vortices generated when fluid passes an obstruction. They are suitable for large flow measurements and are unaffected by variations in fluid density, viscosity, temperature, or pressure. Magnetic turbine flow meters, which use the magnetic field generated by fluid flowing through a turbine, are also appropriate. However, magnetic turbine flow meters may be prone to clogging or damage if the liquid contains excessive impurities. Therefore, selecting the appropriate type depends on the nature of the liquid.
2. Classification Based on Flow Range
Large Flow Range
Recommended Solution: Electromagnetic Flow Meters, Vortex Flow Meters, or Magnetic Turbine Flow Meters
Analysis: These flow meters are well-suited for measuring large flows while maintaining high accuracy and stability. Electromagnetic and vortex flow meters are unaffected by the physical properties of the fluid, whereas magnetic turbine flow meters may require careful consideration of impurities present in the fluid.
Small Flow Range
Recommended Solution: Rotor Flow Meters or Other Small Flow Measurement Instruments
Analysis: Rotor flow meters maintain constant pressure differential by altering the flow area to measure flow. They are suitable for small diameter pipes and low flow rates, offering reliable operation, low maintenance, and long service life. For even smaller flow measurements, other specialized instruments can be used.
3. Classification Based on Cost-Effectiveness
Low-Cost Solutions
Recommended Solution: Flow Meters with High Cost-Performance Ratio
Analysis: For applications where high measurement accuracy and stability are required but at a lower cost, opting for a flow meter with a good cost-performance ratio is essential. For example, an electromagnetic flow meter may be ideal for conductive liquids with moderate flow ranges, while an ultrasonic flow meter could work well for non-conductive liquids with less stringent accuracy requirements, provided the fluid contains sufficient air or gas bubbles.
High-Cost Efficiency Solutions
Recommended Solution: Considering Long-Term Operating and Maintenance Costs
Analysis: In addition to the initial purchase cost, long-term operating and maintenance expenses should be considered when selecting a flow meter. Some flow meters may have a higher initial cost but offer superior accuracy, stability, and low maintenance costs over their lifespan. Conversely, lower-cost flow meters may require frequent maintenance or part replacement, increasing operating costs over time.
4. Classification Based on Environmental Conditions
Corrosive Environments
Recommended Solution: Flow Meters Made from Corrosion-Resistant Materials
Analysis: In corrosive environments, it is crucial to select flow meters constructed from materials resistant to corrosion to ensure accurate and stable measurements. Flow meters made from stainless steel or titanium alloys are commonly used in these applications due to their resistance to aggressive chemicals and corrosive fluids.
High-Temperature or Low-Temperature Environments
Recommended Solution: Flow Meters with High-Temperature or Low-Temperature Resistance
Analysis: In high or low-temperature environments, selecting flow meters designed to withstand extreme temperatures is essential to maintain accuracy and reliability. High-temperature flow meters are made from materials that can handle hot fluids, while low-temperature flow meters come with temperature compensation features to ensure consistent measurement performance in cold environments.
Conclusion
In conclusion, selecting the right flow meter for industrial wastewater applications involves balancing multiple factors, such as fluid properties, flow range, accuracy, environmental conditions, and cost-effectiveness. By understanding the specific requirements of the application and evaluating various flow meter technologies, you can ensure a reliable and efficient measurement system.
If you want to know more about the flow meter or flow meter selection, please consult the Aister flow meter manufacturer email: sales@aistermeter.com for help.
FAQ
Q： What is the most accurate flow meter for conductive liquids?
A： The most accurate flow meter for conductive liquids is the electromagnetic flow meter, as it is highly stable and precise under various conditions.
Q： Can ultrasonic flow meters measure fluids without air bubbles?
A： Ultrasonic flow meters rely on the presence of air or gas bubbles in the fluid for ultrasonic wave transmission. Without these bubbles, their performance may be compromised.
Q： Are vortex flow meters suitable for measuring small flows?
A： Vortex flow meters are generally more suited for larger flow measurements. For small flows, rotor flow meters or specialized small flow measurement instruments are recommended.
Q： What materials are best for flow meters in corrosive environments?
A： Flow meters made from corrosion-resistant materials such as stainless steel or titanium alloys are best suited for corrosive environments.
