Introduction

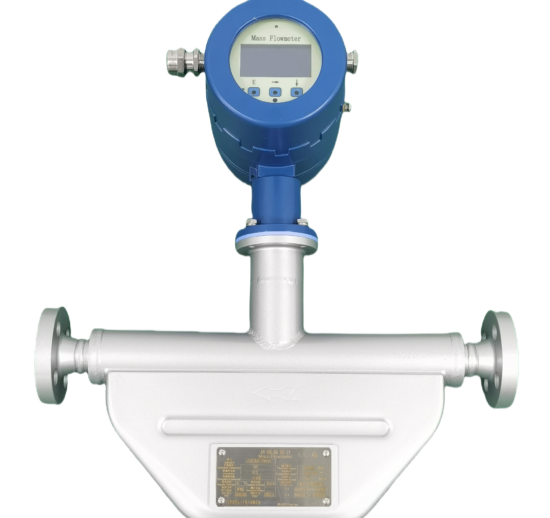

Coriolis Mass Flow Meter is designed according to the Coriolis Principle. it can be widely used for the process detecting and custody transfer/fiscal unit in many industries. Such as petroleum, chemical industry, pharmacy, paper making, food and energy, and so on.

Principle

According to the principle of Coriolis force. Under the alternating current effect, the magnet and coil installed on the measuring tube, these two parallel measuring tubes vibrate at a fixed frequency.

When the flow passing through the pipes, Coriolis force will give rise to deflection (phase shift) on the vibration of two pipes and the deflection of vibration is directly proportional to the mass flow of fluid. Pick up them and the mass flow rate could be calculated.The vibration frequency of measuring tube is determined by the total mass of measuring tube and inner fluid. When the fluid density changes, the vibration frequency of measuring tube will be also changing, as a result, the fluid density can be calculated.The temperature sensor installed in the pipeline can pick up the fluid temperature on time under the coordination of measuring circuit.
