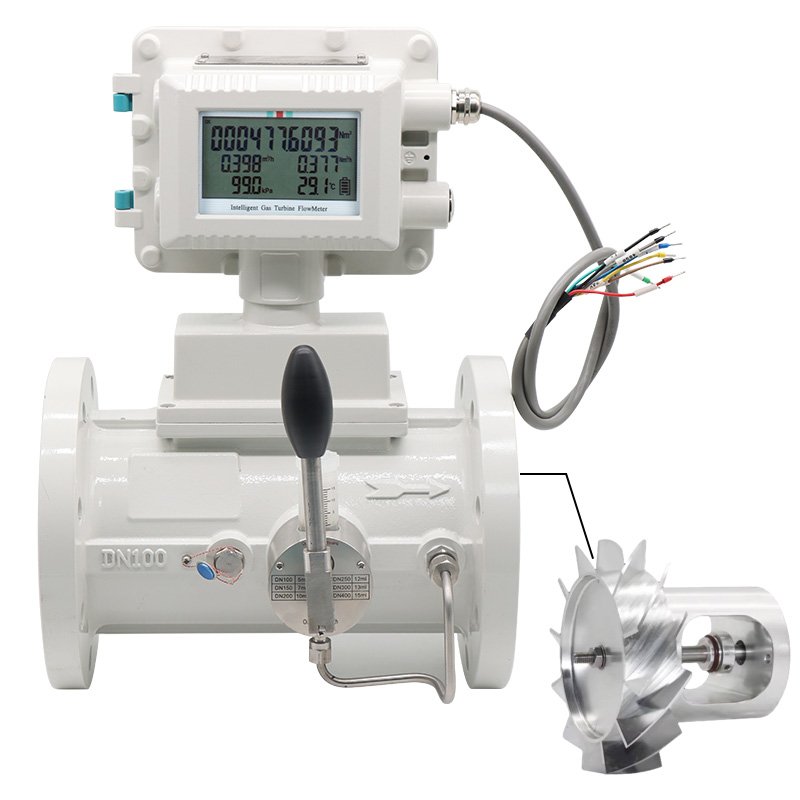

Gas turbine flow meters are widely used instruments that measure the flow rate of gases by utilizing the principle of turbine rotation. These meters are crucial in various industries due to their high accuracy, reliability, and versatility. In this article, we will explore the practical uses and key advantages of gas turbine flow meters.

Practical Applications of Gas Turbine Flow Meters

1. Oil and Gas Industry

In the oil and gas sector, gas turbine flow meters are essential for accurately measuring the flow of natural gas in long-distance pipelines. This ensures fair and precise measurement during gas trade transactions. Additionally, in the petroleum industry, they are used to measure the flow of crude oil, high-pressure injection water, and circulating water, providing accurate flow data for production and processing.

2. Chemical Industry

Gas turbine flow meters are widely used in the chemical industry for measuring the flow of various gases such as hydrogen, nitrogen, and other raw materials. Accurate flow measurement is crucial for optimizing chemical production processes and ensuring the proper mixing of ingredients. In the separation and purification of chemical products, these meters help measure the gas phase flow at the top of distillation columns, enabling process optimization and ensuring product purity.

3. Power Industry

In power generation and combined heat and power (CHP) plants, gas turbine flow meters are used to measure the flow of fuel gases (such as natural gas or coal gas) to the combustion control systems. This ensures that fuel is used efficiently, optimizing combustion and minimizing waste.

4. Other Industrial Applications

In industrial furnaces, boilers, and other combustion equipment, gas turbine flow meters are used to measure the flow of fuel gases, ensuring efficient combustion and improved thermal efficiency. Additionally, in factory compressed air systems, these flow meters help monitor and manage air usage, optimizing energy consumption.

5. Environmental Protection and Water Treatment

Gas turbine flow meters are also used in environmental monitoring, such as measuring water levels in dams and reservoirs, as well as in wastewater treatment processes. These applications help ensure accurate and reliable data for environmental monitoring and control.

Key Advantages of Gas Turbine Flow Meters

1. High Accuracy

Gas turbine flow meters are known for their high precision. The full-scale accuracy typically ranges from 1% to 2%, with high-precision models achieving accuracies of 0.5% to 1%. This makes them ideal for applications that require precise flow measurement, such as trade settlements.

2. Good Repeatability

These meters offer excellent repeatability, meaning they can consistently provide accurate readings when calibrated properly. Their ability to maintain high accuracy over time makes them a preferred choice for trade applications.

3. Wide Flow Range

Gas turbine flow meters can handle a broad range of flow rates. Large-diameter meters typically have a turndown ratio of 20:1 or more, while smaller meters have a range of 10:1. They also have a low starting flow rate, making them adaptable to various flow conditions.

4. Low Pressure Loss

One of the key benefits of gas turbine flow meters is their minimal pressure loss. Under normal conditions, the pressure loss typically ranges from 0.1 to 2.5 kPa, which has a negligible effect on the fluid system’s overall pressure.

5. Compact Structure and Easy Installation

Gas turbine flow meters are known for their compact size and lightweight design, which makes installation easy and efficient. Their small footprint allows them to be installed in a wide range of locations without taking up excessive space.

6. Versatile Display Options

These flow meters can offer various display options, such as mechanical counters, standard flow totalizers, and temperature/pressure compensation devices. Some models are powered by lithium batteries, offering long-term, low-maintenance operation.

7. Strong Anti-Interference Ability

Gas turbine flow meters generally output pulse frequency signals, which makes them resistant to interference. They are also highly suitable for totalized measurements and computer interfacing, offering excellent accuracy with no zero drift.

Conclusion

Gas turbine flow meters are indispensable tools in many industries, offering precise flow measurements, versatility, and efficiency. Their applications in oil and gas, chemical, power, and environmental sectors demonstrate their wide-ranging importance. With advantages such as high accuracy, repeatability, and low pressure loss, these meters are a reliable choice for any flow measurement needs.

If you want to know more about the flow meter or flow meter selection, please consult the Aister flow meter manufacturer email: sales@aistermeter.com for help.

FAQ

Q1: What industries use gas turbine flow meters?
Gas turbine flow meters are used in a variety of industries, including oil and gas, chemical, power generation, industrial applications, and environmental protection sectors.

Q2: How accurate are gas turbine flow meters?
Gas turbine flow meters typically offer full-scale accuracy of 1% to 2%, with high-precision models achieving accuracies of 0.5% to 1%.

Q3: What is the pressure loss of a gas turbine flow meter?
The pressure loss in a gas turbine flow meter is generally between 0.1 to 2.5 kPa, which is minimal and has little impact on the fluid system.

Q4: Can gas turbine flow meters be used for low flow measurements?
Yes, gas turbine flow meters have a low starting flow rate and are suitable for a wide range of flow conditions.

Q5: How do gas turbine flow meters work?
Gas turbine flow meters measure flow by utilizing a turbine that rotates with the movement of the gas. The rotation speed is proportional to the flow rate, which is then converted into a flow measurement.
