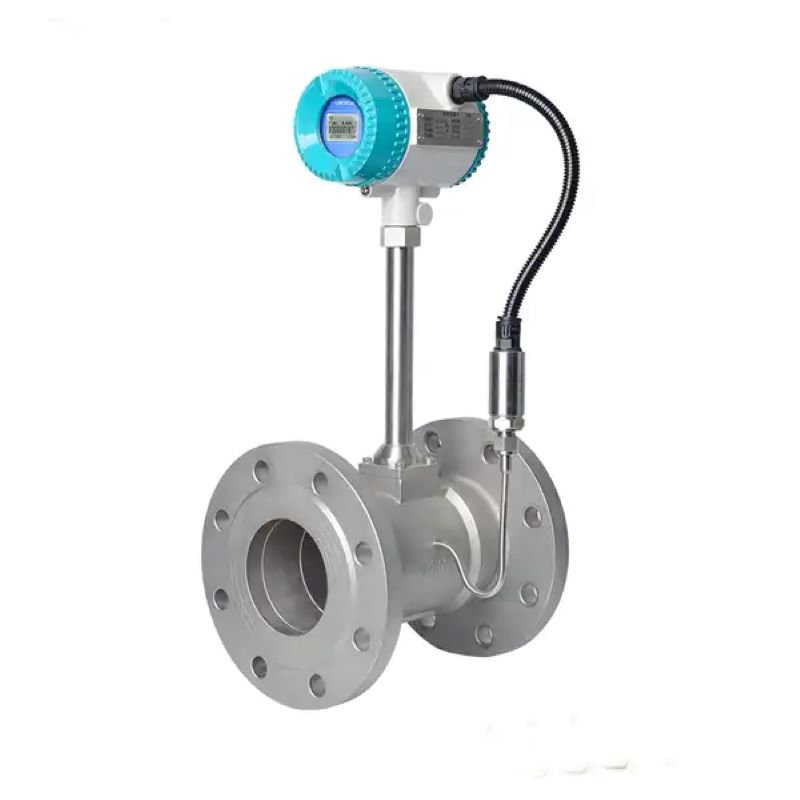

Vortex flow meters have become an indispensable tool in the industrial flow measurement sector due to their precision, reliability, and versatility. Based on the Kármán vortex street principle, vortex flow meters provide accurate measurements of gas, steam, and liquid flow rates. In this article, we will discuss the key features of vortex flow meters and their wide-ranging applications in various industries.

1. High Measurement Accuracy

· Working Principle: The vortex flow meter operates on the principle of the Kármán vortex street. When a fluid passes a bluff body (such as a V-shaped or streamlined object), alternating vortices are shed from both sides of the object. The frequency of these vortices is directly proportional to the fluid’s flow velocity.

· High Precision: Vortex flow meters are designed to capture the vortex frequency and convert it into a flow measurement. Their signal processing technology ensures that high accuracy is maintained across a wide range of operating conditions. This feature is essential for applications that require precise flow measurements.

· Adaptability: Vortex meters are capable of providing accurate measurements across different flow conditions, from steady to fluctuating flow, making them ideal for most industrial environments. The ability to maintain high accuracy under varying conditions ensures their widespread use in many sectors.

2. Wide Flow Range

· Rangeability: One of the most notable features of vortex flow meters is their wide flow range. Vortex meters typically offer a turndown ratio (rangeability) between 10:1 and 50:1, and in some cases even higher. This allows the flow meter to accurately measure low and high flow rates without needing frequent recalibration or equipment replacement.

· Flexibility: The wide rangeability makes vortex flow meters suitable for applications where the flow rate can vary significantly. This is particularly useful in industries like oil and gas, where flow can change rapidly depending on operational conditions.

· Cost-Effective: The ability to measure across a wide range of flow rates eliminates the need to replace or adjust instruments frequently, leading to lower maintenance and operational costs. This feature adds to the overall cost-effectiveness of the vortex flow meter.

3. Low Pressure Loss

· Design Efficiency: Compared to other types of flow meters, vortex flow meters are designed to minimize pressure loss during operation. The streamlined flow path through the meter reduces resistance, which helps prevent energy loss.

· Energy Savings: The low pressure loss results in reduced energy consumption, making vortex flow meters a more energy-efficient choice for measuring flow. This can lead to substantial savings, particularly in large-scale industrial processes.

· System Protection: By minimizing pressure fluctuations, vortex flow meters help protect other components in the system from unnecessary stress, which can extend the lifespan of the entire system. This makes vortex meters an excellent choice for applications where maintaining consistent pressure is critical.

4. High Stability and Reliability

· Durability: Vortex flow meters are constructed with high-quality materials and a robust design, making them resistant to wear, corrosion, and other environmental factors. This ensures long-term stability and reliable performance in harsh industrial environments.

· Self-Diagnosis and Alarming Functions: Many vortex flow meters come equipped with self-diagnostic capabilities and error alarm systems. These features can detect potential issues, such as sensor malfunctions or operational errors, and alert the user promptly to prevent costly downtime or inaccurate readings.

· Long-Term Performance: The absence of moving parts in vortex flow meters further contributes to their stability. With no mechanical components subject to wear and tear, these meters are highly reliable over long periods of continuous operation.

5. Easy Installation and Maintenance

· Simple Installation: Vortex flow meters are easy to install, as they typically do not require complex calibration or extensive setup. This reduces both installation time and costs.

· Low Maintenance: Since vortex meters do not have moving parts, they require very little maintenance. The simple design makes it easy to inspect and clean the meters, reducing the frequency and cost of maintenance.

· User-Friendly: The low maintenance requirements and ease of installation make vortex flow meters ideal for industries that need to minimize downtime and reduce the burden on maintenance staff. Their user-friendly design lowers the overall operational complexity.

6. Multi-Parameter Measurement Capability

· Temperature and Pressure Measurement: Some models of vortex flow meters are equipped with the ability to simultaneously measure additional parameters such as temperature and pressure. This can be particularly useful when flow compensation is necessary for accurate readings.

· Compensation Algorithms: Vortex flow meters often include temperature and pressure compensation algorithms that adjust the flow readings based on changes in these parameters, ensuring the accuracy and reliability of the flow measurement in varying operating conditions.

· Enhanced Accuracy: The ability to measure multiple parameters improves the overall precision of the flow meter, making it an invaluable tool in industries where fluid properties can change frequently, such as in chemical and petrochemical processing.

7. Wide Range of Applications

· Industrial Use: Vortex flow meters are used extensively in industries such as metallurgy, power generation, coal, chemicals, and oil & gas for measuring and controlling the flow of gases, liquids, and steam. Their ability to accurately measure various fluid types makes them a versatile tool in a wide range of applications.

· Energy Metering: In the energy sector, vortex flow meters are used to measure the flow of steam, water, and gas, helping to ensure that energy production and consumption are efficiently monitored.

· Environmental Protection: Vortex meters are also employed in environmental monitoring systems to measure air and water flow in treatment plants or pollution control facilities.

· Transportation: In the transportation industry, vortex flow meters are used to monitor the flow of fuel and other liquids, ensuring that logistics and transportation operations are both safe and efficient.

If you want to know more about the flow meter or flow meter selection, please consult the Aister flow meter manufacturer email: sales@aistermeter.com for help.

Q1: What is the principle behind vortex flow meters?
A1: Vortex flow meters operate on the Kármán vortex street principle, where alternating vortices are shed from a bluff body in the fluid stream. The frequency of the vortices is proportional to the flow velocity, and this frequency is measured to determine the flow rate.

Q2: How accurate are vortex flow meters?
A2: Vortex flow meters typically offer an accuracy of ±1% to ±2% of the reading, depending on the model and the application conditions. Their high accuracy makes them suitable for a wide range of industrial applications.

Q3: What fluids can be measured with vortex flow meters?
A3: Vortex flow meters can measure gases, liquids, and steam. They are commonly used in industrial processes involving water, air, natural gas, and steam.

Q4: Can vortex flow meters handle extreme flow rates?
A4: Yes, vortex flow meters can measure a wide range of flow rates, typically offering a turndown ratio of 10:1 to 50:1. However, for extremely low or high flow rates, specialized models may be required.

Q5: What are the main advantages of vortex flow meters?
A5: The main advantages include high accuracy, low pressure loss, wide rangeability, easy installation and maintenance, and the ability to measure multiple parameters such as temperature and pressure. They also have no moving parts, making them highly reliable and durable.
