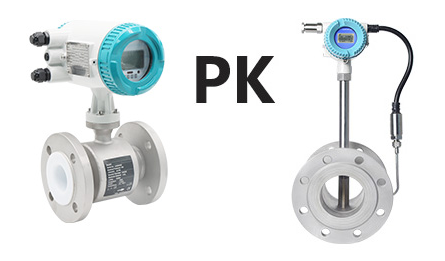

When it comes to industrial flow measurement, vortex flow meters and electromagnetic flow meters are two of the most widely used instruments. However, their working principles, applications, and performance characteristics are fundamentally different. Choosing the right flow meter depends entirely on your process medium, installation conditions, and accuracy requirements.
This guide provides a clear comparison between vortex and electromagnetic flow meters, along with practical selection tips to help you make an informed decision.
1. Working Principle: The Core Difference
| Feature | Vortex Flow Meter | Electromagnetic Flow Meter |
|---|---|---|
| Principle | Based on the Kármán vortex street effect – a bluff body is placed in the flow path, creating vortices. The frequency of these vortices is proportional to flow velocity, which is then converted into flow rate. | Based on Faraday’s Law of Electromagnetic Induction – when a conductive liquid flows through a magnetic field, it generates an induced voltage proportional to its velocity. |
| Measurement Capability | Can measure liquids, gases, and steam (provided they have sufficient density and viscosity). | Can measure only conductive liquids (typically >5 μS/cm). Cannot measure gas, steam, oil, or deionized water. |
2. Key Performance Comparison
| Dimension | Vortex Flow Meter | Electromagnetic Flow Meter |
|---|---|---|
| Medium Compatibility | Wide range: liquids, gases, saturated & superheated steam. | Narrow: only conductive liquids such as water, wastewater, slurries, acids, alkalis, and pulp. |
| Accuracy | ±1.0% R (affected by density & viscosity changes). | ±0.5% R or better, almost unaffected by temperature, pressure, or viscosity. |
| Pressure Loss | Moderate (due to bluff body obstruction). | None – completely unobstructed bore. |
| Straight Pipe Requirement | High (typically 10D upstream, 5D downstream). | Lower (5D upstream, 3D downstream). |
| Minimum Flow | Requires minimum velocity to form vortices. | Excellent for low-flow applications, even near zero flow. |
| Maintenance | Bluff body can wear or accumulate debris. | Electrodes may require cleaning in dirty or scaling media. |
| Cost | More affordable, especially for large pipe sizes and steam service. | Higher cost, particularly in large diameters or special linings. |
3. How to Choose the Right Flow Meter
Ask yourself the following questions before deciding:
- What medium am I measuring?
- Steam (saturated or superheated): ✅ Choose a vortex flow meter – the most reliable and economical solution.
- Gas (air, natural gas, compressed gas): ✅ Vortex flow meter is ideal – electromagnetic meters cannot measure gas.
- Conductive liquid (water, wastewater, slurry): Both can work, but electromagnetic meters offer higher accuracy and no pressure loss.
- Non-conductive liquid (oil, pure water, organic solvent): ❌ Electromagnetic meters won’t work – choose vortex or other types like mass flow meters.
- Is my medium dirty or likely to cause scaling?
- For dirty, particle-laden media like sludge or pulp, choose electromagnetic flow meters with scraper or replaceable electrodes.
- Can my system tolerate pressure loss?
- If no pressure drop is acceptable (e.g., in water pumping or pharma industry), electromagnetic meters are preferred.
- What is my budget?
- Tight budget and large diameter pipes → vortex flow meter is more cost-effective.
- Budget is flexible, and accuracy is critical → electromagnetic flow meter is the best choice.
4. Typical Application Scenarios
✅ Choose Vortex Flow Meters for:
- Steam measurement (most common application).
- Industrial gases (air, nitrogen, natural gas, etc.).
- Clean, low-viscosity liquids.
- Large pipelines where cost efficiency is a priority.
✅ Choose Electromagnetic Flow Meters for:
- Conductive liquid measurement (water, wastewater, slurry).
- Corrosive liquids (with PTFE lining and Hastelloy electrodes).
- Systems requiring no pressure loss.
- High-accuracy billing or process control applications.
5. Final Recommendation
There is no universally “better” flow meter – only the most suitable one for your process.
- Measure steam or gas? → Go for a vortex flow meter.
- Measure conductive, dirty, or corrosive liquid? → Choose an electromagnetic flow meter.
- Measure clean but non-conductive liquid? → Stick with a vortex flow meter or consider a Coriolis mass flow meter.
Before purchasing, always provide your supplier with medium type, temperature, pressure, pipe size, flow range, and installation conditions. Professional advice ensures accurate selection and avoids costly mistakes.
