Steam flowmeter is a special instrument for measuring steam flow, widely used in industrial fields, especially in chemical, energy, industrial manufacturing, food processing and other fields. The following is a detailed introduction to the principle of steam flowmeter:
Working principle
The working principle of the steam flowmeter is mainly based on the basic principles of fluid dynamics and thermodynamics, and the specific working principle of different types of steam flowmeters is different, and there are three common ones:

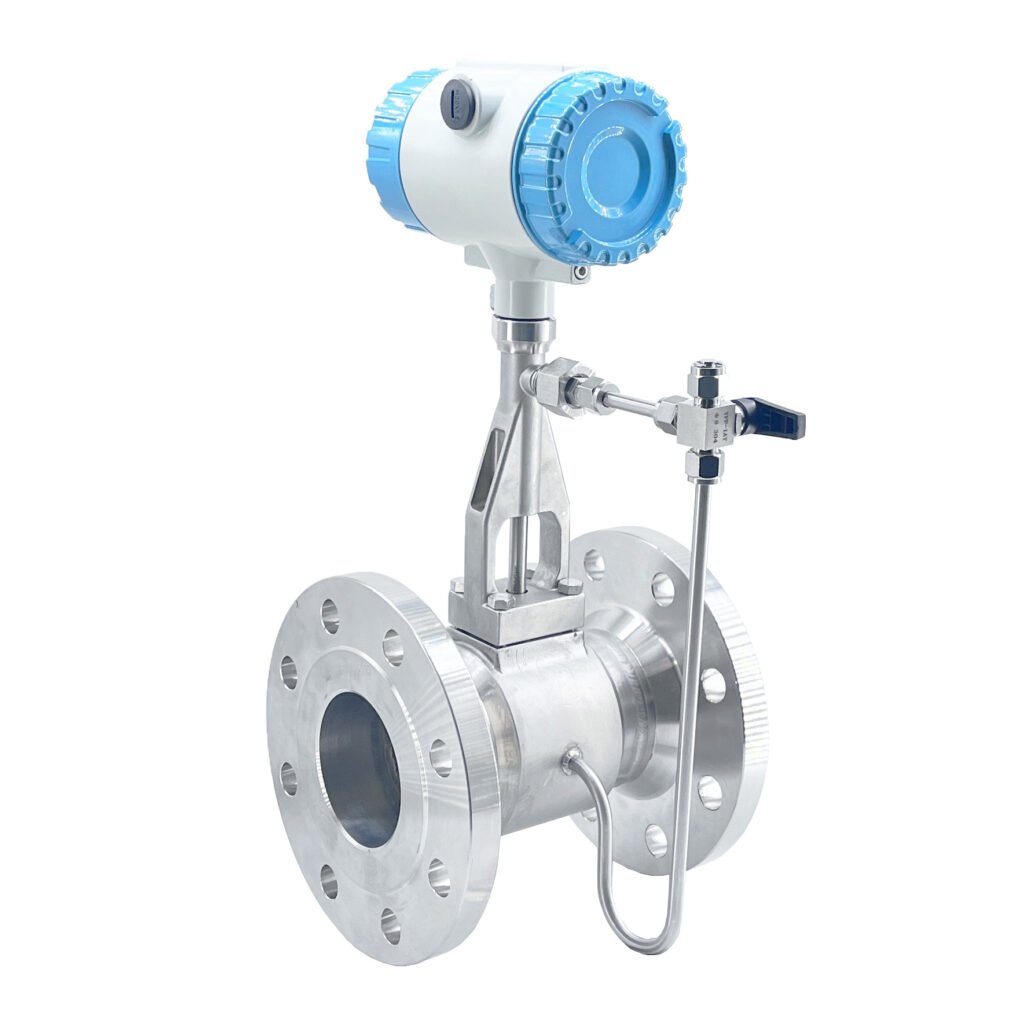

Use the vortex generated by the flow of fluid in the pipe to measure the flow rate. When a fluid flows through an obstacle (such as a triangular column vortex generator), vortices form behind it. These vortices are called Karman vortices. The frequency of the vortex is proportional to the flow rate, so the flow rate can be determined by measuring the frequency of the vortex.
Differential pressure flowmeter:
Based on Bernoulli’s principle, the flow rate is calculated by measuring the pressure difference when the fluid flows in the pipe. Differential pressure flowmeter is usually composed of flow orifice plate, pressure pipeline, differential pressure transmitter, etc. When the fluid flows through the orifice, there is a pressure difference, which is proportional to the square of the flow rate. The pressure difference is introduced into the differential pressure transmitter through the pressure pipeline, and the differential pressure transmitter converts the measured differential pressure signal into an electrical signal output, so that the flow rate can be calculated.
Technical characteristics
Steam flowmeters have a variety of technical features that make them widely used in modern industry:
- High accuracy: Modern steam flowmeters usually have high measurement accuracy and can meet the needs of industrial production.
- Temperature and pressure compensation: Many flowmeters integrate temperature and pressure compensation to maintain measurement accuracy under different operating conditions.
- Intelligent design: The intelligent flowmeter is equipped with a digital circuit, which can automatically process and compensate data, improving the convenience of use.
- A variety of measurement methods: The steam flowmeter can choose different measurement methods according to actual needs, such as vortex type, thermal type, differential pressure type, etc., to adapt to different working conditions and fluid characteristics.
- High reliability: The steam flowmeter adopts advanced technology such as anti-vibration probe and surface mounting process, which improves the reliability and stability of the equipment.
- Easy maintenance: The structure of the steam flowmeter is reasonable, easy to install and maintain, and reduces the cost of use.
Application field
Steam flowmeters have a wide range of applications in a number of fields:
- Power industry: In power plants, steam flow meters are used to monitor the steam output of boilers to ensure power generation efficiency and safety.
- Chemical industry: In the chemical production process, the steam flow meter is used to control the temperature and pressure of the reactor to ensure the stability and safety of the reaction.
- Food processing: In the food processing industry, steam flow meters are used to control the use of steam to ensure product quality and production efficiency.
Development trend
With the progress of science and technology and the development of industrial production, the future development trend of steam flowmeter is mainly reflected in the following aspects:
- Intelligent: With the development of the Internet of Things and big data technology, steam flowmeters will increasingly integrate intelligent functions to enable remote monitoring and data analysis.
- High accuracy: The application of new materials and technologies will improve the measurement accuracy of flowmeters to meet more stringent industry standards.
- Environmental protection and energy saving: Future steam flowmeters will pay more attention to energy conservation and environmental protection, helping enterprises to reduce energy consumption and emissions.
In summary, as an important part of efficient energy metering technology, steam flowmeters play a vital role in modern industry. Its working principle is based on the basic principles of fluid dynamics and thermodynamics, with high precision, temperature and pressure compensation, intelligent design and other technical characteristics, widely used in electric power, chemical industry, food processing and other fields. With the progress of science and technology and the development of industrial production, the future of steam flow meters will be more extensive, and will play a greater role in improving production efficiency, reducing energy consumption and ensuring safety.
