Gas turbine flow meters are widely used for measuring the flow of gases in industrial and commercial applications. These meters operate based on a simple yet effective principle and are favored in many industries due to their accuracy and reliability. In this article, we will explore the working principle of gas turbine flow meters, their advantages and disadvantages, common applications, installation considerations, and end with a FAQ section to address common queries.
Working Principle of Gas Turbine Flow Meters

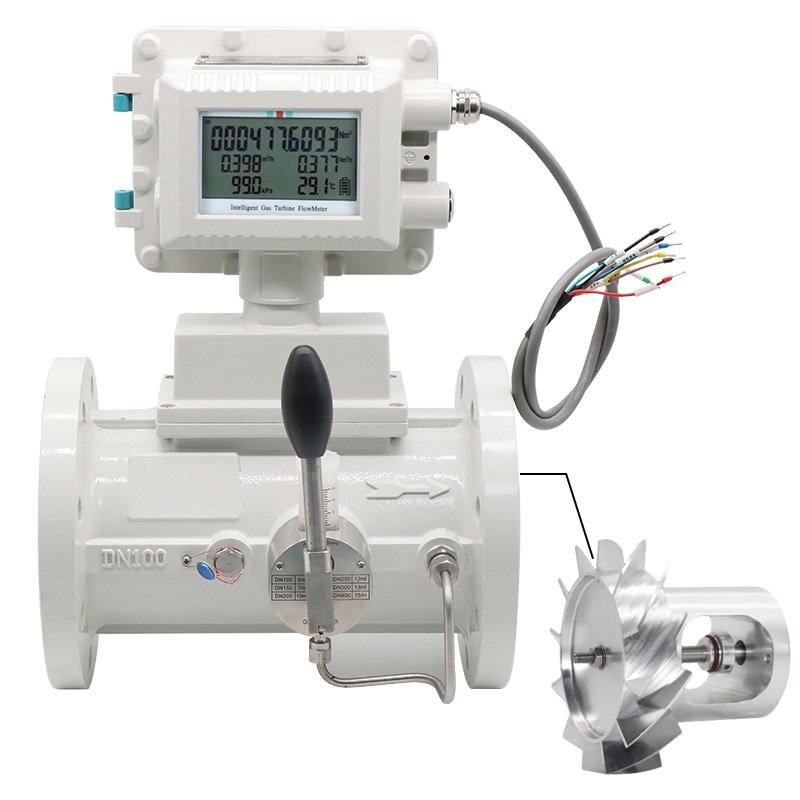

Gas turbine flow meters operate on the principle of mechanical rotation. They consist of a rotor, which is placed in the flow of gas, and when the gas flows through the meter, it causes the rotor to spin. The speed of the rotor is directly proportional to the velocity of the gas passing through the meter. This rotational speed is then measured by sensors, which convert the mechanical motion into an electronic signal. The electronic signal is then used to calculate the flow rate.
The flow meter can be calibrated to measure the volume or mass of gas flow. The advantage of this design is that it is relatively simple, accurate, and reliable, making it suitable for a variety of industrial applications.
Applications of Gas Turbine Flow Meters
Gas turbine flow meters are commonly used in various sectors, including:
- Oil and Gas Industry: Gas turbine meters are used to measure the flow of natural gas in pipelines, allowing for accurate measurement of gas distribution and consumption.
- Chemical and Petrochemical Industries: These flow meters are used to monitor and control the flow of gases in chemical processing plants.
- HVAC Systems: In large building management systems, gas turbine meters can help measure the flow of air or other gases used for ventilation and heating purposes.
- Aerospace and Automotive: These meters are also used for testing gas flow in aerospace applications, such as engines and turbines, and in automotive research and development.
- Utility Metering: They are used for monitoring gas consumption in residential and commercial utility metering systems.
Advantages and Disadvantages
Advantages:
- High Accuracy: Gas turbine meters provide precise measurement of gas flow, making them ideal for applications that require high accuracy.
- Wide Range of Measurement: These meters are capable of measuring a wide range of flow rates, from low to high volumes.
- Durability: Gas turbine meters are designed to withstand harsh conditions and have a long operational life with minimal maintenance.
- Non-intrusive: In many cases, the meter can be installed without disrupting the flow of gas, making installation easier.
Disadvantages:
- Susceptibility to Gas Quality: Gas turbine meters can be affected by changes in the gas quality, such as viscosity and temperature, which may impact measurement accuracy.
- Initial Cost: Although reliable, the initial cost of gas turbine meters can be relatively high compared to other types of flow meters.
- Mechanical Wear: The moving parts of the rotor may experience wear over time, requiring maintenance or replacement.
- Limited to Clean Gases: These meters are typically best suited for clean gases and are not recommended for use with particulate-laden or viscous fluids.
Installation Considerations
Proper installation of gas turbine flow meters is crucial for ensuring accurate readings and long-term reliability. Here are some important installation tips:
- Straight Pipe Sections: It is recommended to install the meter in a section of pipe that has a straight length of 10-15 times the pipe diameter before the meter and 5-10 times the diameter after the meter. This ensures a uniform flow profile and minimizes turbulence, which could affect the readings.
- Orientation: Ensure that the meter is installed in the correct orientation, typically with the rotor axis aligned with the flow direction to avoid incorrect readings.
- Temperature and Pressure Considerations: Gas turbine meters need to be calibrated according to the gas’s temperature and pressure to ensure accurate readings, as these factors can influence the gas’s density and flow characteristics.
- Regular Maintenance: Periodically check the meter for signs of wear or damage, and ensure the rotor is free to rotate smoothly. Regular cleaning may be necessary if there is a buildup of debris in the meter.
- Avoiding Viscous or Dirty Gases: Since gas turbine meters are designed for clean gases, ensure that the fluid being measured is free from particulates and excess moisture.
In conclusion, gas turbine flow meters are an excellent choice for accurately measuring gas flow in a variety of industries. While they offer numerous advantages, including high accuracy and durability, users must be mindful of their susceptibility to gas quality and mechanical wear. When properly installed and maintained, gas turbine flow meters can provide long-lasting, reliable service.
If you want to know more about the flow meter or flow meter selection, please consult the Aister flow meter manufacturer email: sales@aistermeter.com for help.
FAQ
1. What gases can be measured with a gas turbine flow meter?
Gas turbine flow meters are typically used to measure clean gases such as natural gas, air, nitrogen, and oxygen. They are not suitable for measuring viscous or particulate-laden gases.
2. How do gas turbine meters compare to other types of flow meters?
Gas turbine meters provide high accuracy and are best suited for clean gas applications. However, they are more expensive compared to other types like thermal or differential pressure flow meters, which may be more cost-effective for certain applications.
3. Can gas turbine flow meters handle high-pressure environments?
Yes, gas turbine meters can be designed to withstand high-pressure conditions. However, it is important to ensure that the meter is rated for the specific pressure range of the application.
4. How often do gas turbine flow meters need maintenance?
The frequency of maintenance depends on the application and operating conditions. Regular checks for wear on the rotor and cleaning of the meter are recommended to maintain accurate performance.
5. Are gas turbine flow meters affected by temperature?
Yes, temperature can affect the accuracy of gas turbine meters. It is important to calibrate the meter for the specific temperature of the gas being measured to ensure accurate flow readings.
