ATLQ Positive Displacement Rotary Flow Meter

Gas rotary flow meter is widely used in urban gas trade measurement, especially for organs, schools, enterprises and institutions, hotels, restaurants and other large gas users trade measurement.It can also be used for various industrial raw gas main metering, gas distribution station, gas supply station and etc.

High accuracy, good repeatability, the internal rotor through precision machining and dynamic balance detection, non-contact rotation, good lubrication of bearings and enhanced processing and manufacturing processes, to ensure the consistency of the rotor, good symmetry, to ensure good repeatability and service life.

Using high-precision digital temperature sensor and digital pressure sensor, and the digital pressure sensor has temperature correction function, high pressure detection accuracy, good long-term stability, small temperature source.



Enquiry

Description

Gas Roots (Rotary) Flow Meter is an accurate instrument based on the positive displacement measurement principle for gas flow measurement. The rotary flow meter is super suitable for natural gas measurement and trade settlement due to its high accuracy level.



Rotary Flow meter consists of two parts, waist wheel flow sensor and display instrument, it has many advantages, such as high accuracy, wide range, small size, light weight, easy installation and maintenance, reliable use and durable service life and etc.

It commonly used to measure natural gas, coal gas, inert gas, air and other gas flow measurement. It is an ideal flow metering device for domestic and foreign urban gas, oilfield chemical, scientific research and other departments.

Working Principle

The intelligent Gas Roots Flow Meter is mainly composed of a shell, a conjugate rotor and an intelligent flow integrator. A pair of conjugate rotors installed in the measuring chamber maintain the correct relative position of the rotors through the precision machining adjusting gear under the action of the inlet and outlet pressure difference of the circulating gas (P in > P out). The optimum working clearance is maintained between the rotor, between the rotor and the shell, between the rotor and the wall panel, and continuous non-contact sealing is achieved. For each rotation of the rotor, four times the effective volume of the measuring chamber is output.

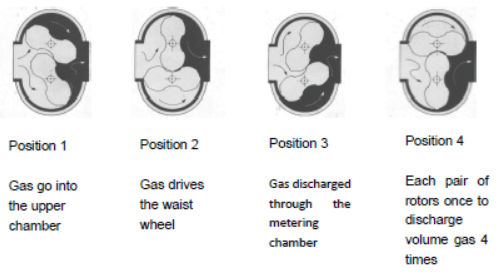

Its measurement process and working principle are shown in Figure 2 (only a quarter cycle is shown in the figure).

The intelligent flow integrator consists of temperature and pressure detection, flow sensor and microprocessor unit. The microprocessor in the intelligent flow integrator compensates the temperature and pressure according to the gas equation and corrects the compression factor as follows:

············· (1)

In the formula:

Qn: volume flow under standard condition (m3/h);

Qg: volume flow under working condition (m3/h);

Pg: Gauge pressure (kPa) at the pressure detection point of the flow meter;

Pa: local atmospheric pressure (kPa);

Tg: absolute temperature of the medium (273.15+t) (K);

t: Temperature of the measured medium (℃);

Zn: compression coefficient under standard state;

Zg: compression coefficient under working condition;

n: absolute temperature (273.15+20) under standard condition (K);

Pn: Standard atmospheric pressure (101.325kPa).

Note: Natural gas Zn/Zg = Fz2, Fz is called the super compression factor, according to the China National Petroleum Corporation standard SY/T6143-1996 formula to calculate.



Features

  • High-strength aluminum alloy waist wheel, corrosion resistance, anti-aging, long service life, high accuracy, good repeatability
  • Small starting flow, wide range, small pressure loss
  •  No need for a straight pipe section before and after the flowmeter, the measurement accuracy is not affected by pressure and flow changes, and can be installed in a narrow environment
  • Large-screen LCD display, the display content is rich and clear
  • Output signal diversification, can be selected according to customer requirements (4 ~ 20) mA standard analog signal, working condition pulse signal, IC card standard volume signal and RS485 communication
  • Intelligent flow integrator can rotate 350 degrees in counterclockwise
  • Direction to facilitate data reading in different directions
  • Integrator LCD display can withstand 80℃ high temperature
  • Large-screen LCD display, the display content is rich and clear

Specification

  • Accuracy level:

Level 1.0: QT-Qmax is ±1.0%, Qmin-qt is ±2.0%, where Qt=0.05Qmax.

Level 1.5: QT-Qmax is ±1.5%, Qmin-Qt is ±3.0%, where Qt=0.05Qmax.

  • Basic parameters

Type specificationFlow specificationNominal diameter

(mm)

Flow range

(m³/h)

Starting flow

(m³/h)

Maximum pressure loss

(KPa)

ATLQ-25G16DN251-250.050.08
ATLQ-40G25DN401-400.050.08
ATLQ-50G25

DN50

1-400.10.08
G402-650.10.1
G652-1000.120.15
ATLQ-80G65

DN80

2-1000.120.15
G1002.5-1600.10.15
G1603-2500.10.18
ATLQ-100G160DN1003-2500.10.2
G2504-5000.650.35
ATLQ-150G400DN1508-6500.760.46
G65015-10000.850.5
ATLQ-200G1600DN20032-16000.950.6
  • Dimensions

Type specificationFlow specificationLH1HRemark
ATLQ-25G16273128340Note: 1. The flange connection size in the table is PN1.6MPa, and other elements not specified are implemented according to GB/T9119-2010 standard.

2, if you need PN1.6MPa and other standard specifications flange size according to the relevant standard requirements, the outline size please contact the manufacturer customized.

3, when installing, please consider the thickness of the flowmeter and the metal sealing gasket at both ends of the pipe (2~3) mm.

ATLQ-40G25354190375
ATLQ-50G25354190375
G40425190375
G65425190375
ATLQ-80G65412190375
G100412190375
G160475245400
ATLQ-100G160575245400
G250665245400
ATLQ-150G400683460505
G650802460505

 Installation mode

Vertical installation: When vertical installation, the gas inlet end needs to be on the top, and the air flow from top to down, that is, upward and downward. The company recommends that users adopt vertical installation as far as possible, and vertical installation is conducive to the self-cleaning ability of the rotor on debris.

 vertical installation

Horizontal installation: When horizontal installation, the axis of the inlet and outlet end of the flow meter should not be lower than the pipe axis to prevent impurities in the gas from remaining in the flow meter and affecting normal operation. At the same time, the flow meter flange should be directly connected with the filter flange.

horizontal installation
