Introduction
Gas Turbine Flow Meters are essential tools for industries requiring precise and reliable gas flow measurement. From natural gas transmission to chemical plant monitoring, these meters provide critical data for operational efficiency and compliance. This article explores the technology, advantages, and applications of Gas Turbine Flow Meters, with a focus on how ASTmeters delivers cutting-edge solutions for modern industrial needs.
How Does a Gas Turbine Flow Meter Work?

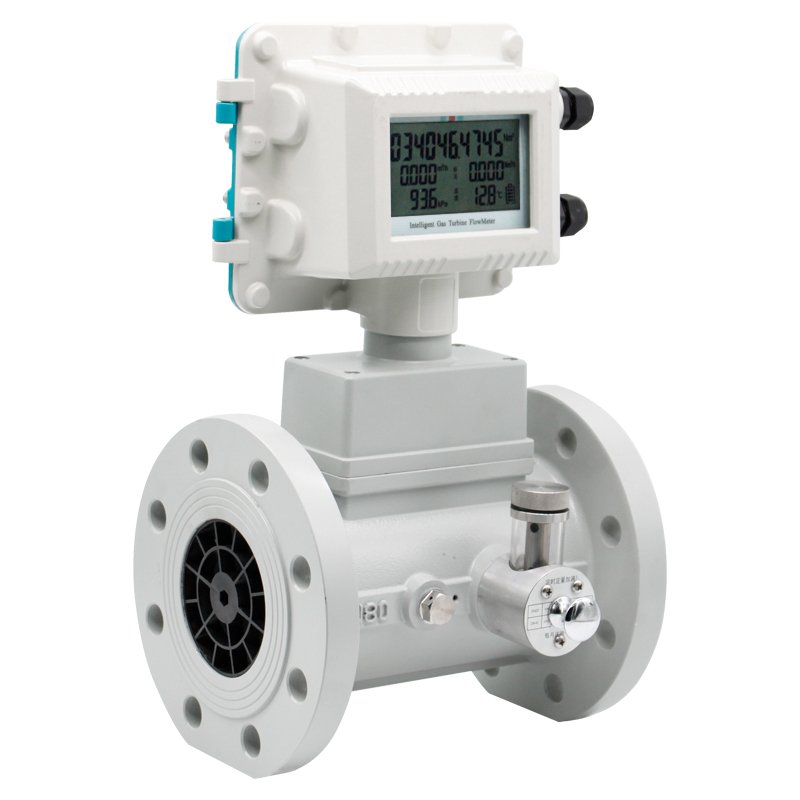

A Gas Turbine Flow Meter operates by directing gas through a specialized rectifier, which stabilizes and accelerates the flow. As the gas passes over turbine blades angled relative to the flow direction, it generates rotational torque. The turbine’s angular velocity becomes proportional to the gas volume flow rate, and electromagnetic sensors convert this motion into pulse signals. These signals, combined with temperature and pressure data, are processed by an intelligent integrator to display real-time flow metrics13.
Key Components:
- Integrated Rectifier: Minimizes turbulence for stable flow measurement1.
- High-Quality Turbine Blades: Made from corrosion-resistant alloys for durability1.
- Smart Sensors: Track temperature, pressure, and flow rate with automatic compensation1.
Advantages of Gas Turbine Flow Meters
- High Accuracy and Sensitivity
Gas Turbine Flow Meters achieve precision levels up to ±1.0% (with calibration) and a wide range ratio of 1:30, making them ideal for detecting low-flow scenarios or rapid fluctuations13. - Robust Design for Harsh Environments
Constructed from 304 stainless steel or cast aluminum, these meters withstand extreme temperatures (-30°C to +80°C) and pressures up to 420 bar. They also feature explosion-proof certifications (ExdⅡCT6) and IP65 protection against dust and moisture1. - Low Maintenance and Long Lifespan
Advanced bearings and a friction-free rotor design reduce wear, while integrated diagnostics enable predictive maintenance. A single 3.2V lithium battery can power the device for over three years1. - Versatile Data Outputs
Support 4-20mA, pulse signals, and RS485 communication for seamless integration with industrial automation systems1.
Applications of Gas Turbine Flow Meters 1
- Oil & Gas: Monitor pipeline transmission and flare gas with high repeatability.
- Chemical Processing: Track reactive gases like ammonia or hydrogen blends.
- Energy Management: Optimize biogas production in waste-to-energy plants.
- HVAC Systems: Measure compressed air efficiency in industrial facilities.
Technical Comparison: Gas Turbine vs. Other Flow Meters
| Feature | Gas Turbine Flow Meter | Coriolis Meter | Ultrasonic Meter |
|---|---|---|---|
| Accuracy | ±1.0% | ±0.1% | ±1.5% |
| Pressure Range | Up to 420 bar | 63 bar | 56 bar |
| Temperature Range | -30°C to +80°C | -175°C to 720°C | -40°C to 150°C |
| Flow Range Ratio | 1:30 | 1:10 | 1:20 |
| Power Consumption | <1W (external) | 5-10W | 2-5W |
Why Choose Astrmeters’ Gas Turbine Flow Meters?
ASTmeters combines innovation with reliability to meet diverse industrial demands:
- Certified Compliance: Adheres to GB/T8940-2003 and international safety standards1.
- Custom Solutions: Tailored designs for high-pressure hydrogen or corrosive gas applications.
- Advanced Diagnostics: Real-time data logging and remote monitoring via IoT-enabled interfaces.
Explore Our Product Line: Astmeters Gas Turbine Flow Meters
How to Select the Right Gas Turbine Flow Meter
- Define Operational Parameters: Consider flow rate, gas type, temperature, and pressure ranges.
- Prioritize Accuracy Needs: High-sensitivity models excel in leak detection and low-flow scenarios.
- Verify Certifications: Ensure compliance with industry standards like ISO 9001 or ATEX.
For expert guidance, visit our Technical Support Hub.
Gas Turbine Flow Meters offer unparalleled precision and durability for industrial gas measurement. With advanced compensation features, robust construction, and versatile integration capabilities, they are a long-term investment for optimizing operational efficiency.
Ready to Enhance Your Gas Flow Monitoring? Contact Astmeters for a tailored solution.
