Nitrogen flow meters are vital instruments in industrial automation, used primarily to measure nitrogen gas flow rates. Here is a detailed introduction to nitrogen flow meters:

1. Working Principles

Nitrogen flow meters operate based on several principles, including the Kármán vortex street and variable area measurement principles.

Kármán Vortex Street Principle
When nitrogen enters the flow meter, it first passes through a pre-guiding structure that accelerates the gas. The turbine blades, subjected to fluid force, generate torque and begin to rotate. When the forces reach equilibrium, the turbine’s rotational speed stabilizes, correlating linearly with the flow rate. The rotating signal disc’s magnets periodically alter the magnetic resistance of the sensor, producing a pulse signal proportional to the gas flow. This signal is amplified, shaped, and processed by a flow calculator, along with pressure and temperature signals, to display the standard volume flow and totalized volume.

Variable Area Measurement Principle
This principle relies on altering the cross-sectional area of the channel through which the gas flows. As the fluid moves, it lifts or lowers a float, changing the passage area. By measuring the float’s position, the flow rate can be determined.

2. Types of Nitrogen Flow Meters

Nitrogen flow meters come in various forms, including gas turbine flow meters, vortex flow meters, rotary vortex flow meters, and roots flow meters.

  • Gas Turbine Flow Meters
    Suitable for nitrogen, natural gas, and other gases, these meters feature high precision, low power consumption, and ease of installation and maintenance.

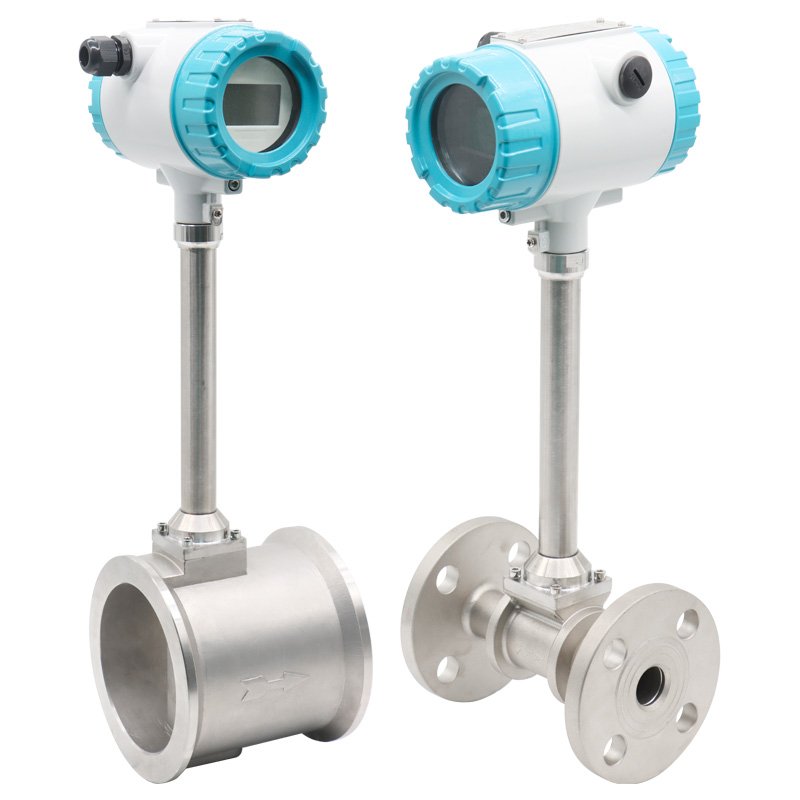

  • Vortex Flow Meters
    Known for their simple structure and wide measurement range, these meters calculate flow by measuring vortex frequencies generated as gas flows through a vortex generator.
  • Precession Vortex Flow Meters
    Designed for measuring gas flow under varying pressures, these meters can be constructed from materials like aluminum alloy or stainless steel depending on pressure requirements.
  • Gas Roots Flow Meters
    Ideal for confined spaces, these meters perform accurately under harsh weather conditions and fluctuating gas loads.

3. Key Features

  • High Precision
    Nitrogen flow meters are engineered for high accuracy, meeting diverse application needs.
  • Low Power Consumption
    Many meters incorporate advanced low-power technology, enhancing energy efficiency.
  • Ease of Installation and Maintenance
    Rational design allows for straightforward installation and simplified maintenance procedures.
  • Versatile Output Options
    These meters support various output modes, such as pulse signals and 4-20mA current signals, enabling seamless integration with computing systems.

4. Applications

Nitrogen flow meters are extensively used in industries such as oil and gas, chemical production, power generation, pharmaceuticals, food processing, and water treatment. They monitor and control nitrogen flow during production, ensuring process stability and product quality. Additionally, they play a crucial role in nitrogen storage and transportation by tracking inflow and outflow volumes for inventory and logistics management.

5. Selection Tips

Choosing the right nitrogen flow meter involves the following considerations:

  • Measurement Range
    Select a range that aligns with your specific needs to ensure accurate readings.
  • Accuracy Requirements
    Higher accuracy typically comes at a higher cost, so choose a meter based on application demands.
  • Operating Conditions
    Verify that the meter’s pressure and temperature ranges suit your operating environment.
  • Output Compatibility
    Ensure the meter’s output format matches your data processing systems.
  • Brand and Support
    Opt for reputable brands offering excellent customer service and technical support.

FAQs

Q1: What is the typical accuracy of nitrogen flow meters?
A1: The accuracy depends on the type of flow meter. Generally, high-quality meters offer accuracy levels of ±0.5% to ±1.0%.

Q2: Can nitrogen flow meters handle other gases?
A2: Yes, many nitrogen flow meters can measure other gases, such as natural gas and air, provided they operate within the specified ranges.

Q3: What maintenance is required for nitrogen flow meters?
A3: Routine checks for sensor cleanliness, calibration, and ensuring no blockages in the flow path are essential for optimal performance.

Q4: Are nitrogen flow meters compatible with digital monitoring systems?
A4: Most modern nitrogen flow meters feature digital output options like 4-20mA signals, allowing integration with monitoring systems.

Q5: How do I ensure long-term reliability of my flow meter?
A5: Regular maintenance, adhering to operating specifications, and using genuine replacement parts ensure long-term reliability.
