Nitrogen flow measurement can choose a variety of flowmeters, common vortex flowmeter, rotor flowmeter, V-cone flowmeter, pressure flowmeter and thermal flowmeter. Here are some suggestions for selecting a nitrogen flowmeter:
Measurement principle and characteristics
- Vortex flow meter: Based on the Karman vortex principle, the flow rate is calculated by measuring the vortex frequency generated when the gas flows through the vortex generating body. It has the advantages of high measurement accuracy, low power consumption, easy installation and maintenance. Suitable for a wide range of flow measurements, and the price is relatively economical.
- Rotameter: Use the flow of fluid in the pipe to push the rotor to rotate to measure flow. It usually has high measurement accuracy and fast response time, but may be affected by impurities in the gas. Suitable for small flow measurement.
- V-cone flowmeter: Composed of a conical body and a sharp cone-shaped prism, the flow rate is calculated by measuring the pressure difference of the fluid. It has the characteristics of wide measuring range and high precision.
- Pressure flowmeter: Calculate the flow rate by measuring the pressure change of the fluid in the pipe. Suitable for large flow measurement, and the measurement range is wide.

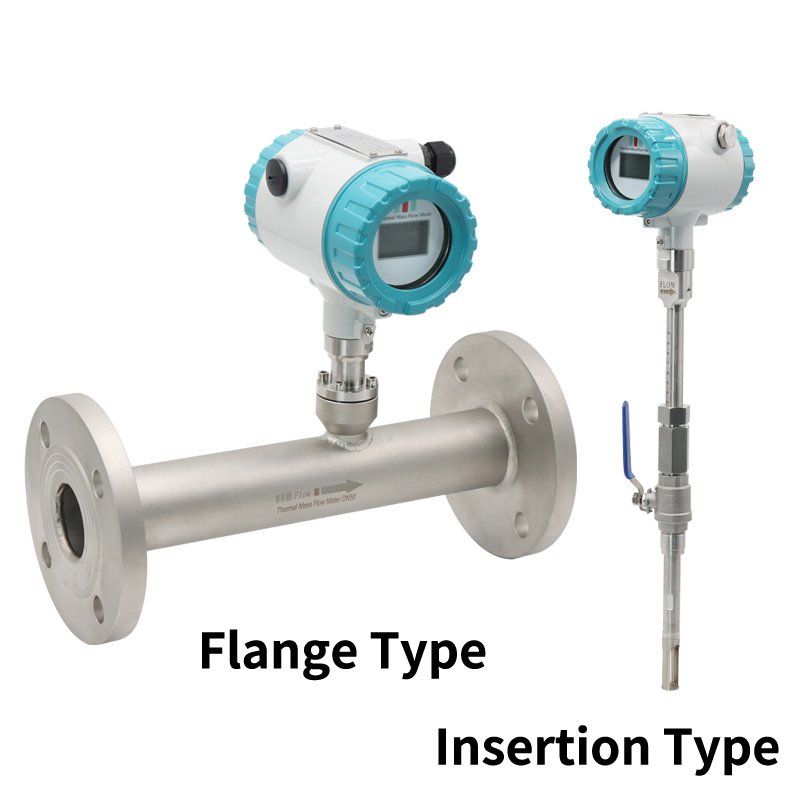

- Thermal Mass Flow Meter: Calculate the flow rate of nitrogen by measuring the temperature difference before and after heating. It usually has high measurement accuracy and fast response time, but the price is relatively high. Suitable for measuring the flow of flammable gases.
Selection factor
- Measurement Range: Determine the required nitrogen flow measurement range based on the expected flow of nitrogen in the process or system. Ensure that the selected flowmeter covers the full range from minimum to maximum flow.
- Accuracy: Measurement accuracy is an important indicator to measure the performance of the flow meter. Determine the required level of accuracy based on actual requirements and application scenarios. Generally, the higher the accuracy level, the higher the price of the flow meter.
- Working pressure: The working pressure range of the nitrogen flowmeter should match the working pressure of the system or pipeline. Ensure that the flow meter can withstand the actual working pressure to ensure its stable operation.
- Operating temperature: Nitrogen may exhibit different characteristics at different temperatures. Therefore, it is crucial to choose a flowmeter that matches the operating temperature range. Ensure that the flow meter can work properly in the operating environment.
- Environmental factors: consider humidity, vibration and other factors in the working environment. Choose a nitrogen flowmeter that can operate stably in harsh environments to ensure measurement accuracy and reliability.
- Output mode: The output mode of the nitrogen flowmeter is generally divided into analog output and digital output. If the measurement results need to be sent to a device such as a computer for processing, the digital output model should be selected.
- Additional functions: Consider whether the flow meter has data recording, remote communication and other functions. These features can help better monitor and manage nitrogen flow data.
- Cost and budget: The price of nitrogen flowmeters varies by model, brand, measuring range and other factors. In the selection, it is necessary to consider the budget and actual needs, and choose cost-effective products. In addition to the purchase cost, it is also necessary to consider the flow meter’s operating costs, maintenance costs and other factors.
Brand and supplier
- Brand selection: Choosing a well-known and reputable brand can ensure the quality and performance of the flow meter. At the same time, these brands usually provide perfect after-sales service and technical support.
- Supplier selection: understand the supplier’s supply ability, after-sales service quality and other aspects. Choosing a supplier that can provide timely technical support and after-sales service can ensure that problems encountered during use can be resolved in a timely manner.
To sum up, the selection of the right nitrogen flowmeter requires a comprehensive consideration of several factors. It is suggested that in practical applications, selection should be made according to specific needs and conditions, and the opinions of industry professionals should be consulted.
